Controller for blood Collector Monitor

₹ 5500 (Tax Excluded)

Buy / Inquire Now Datasheet

Quick Overview:

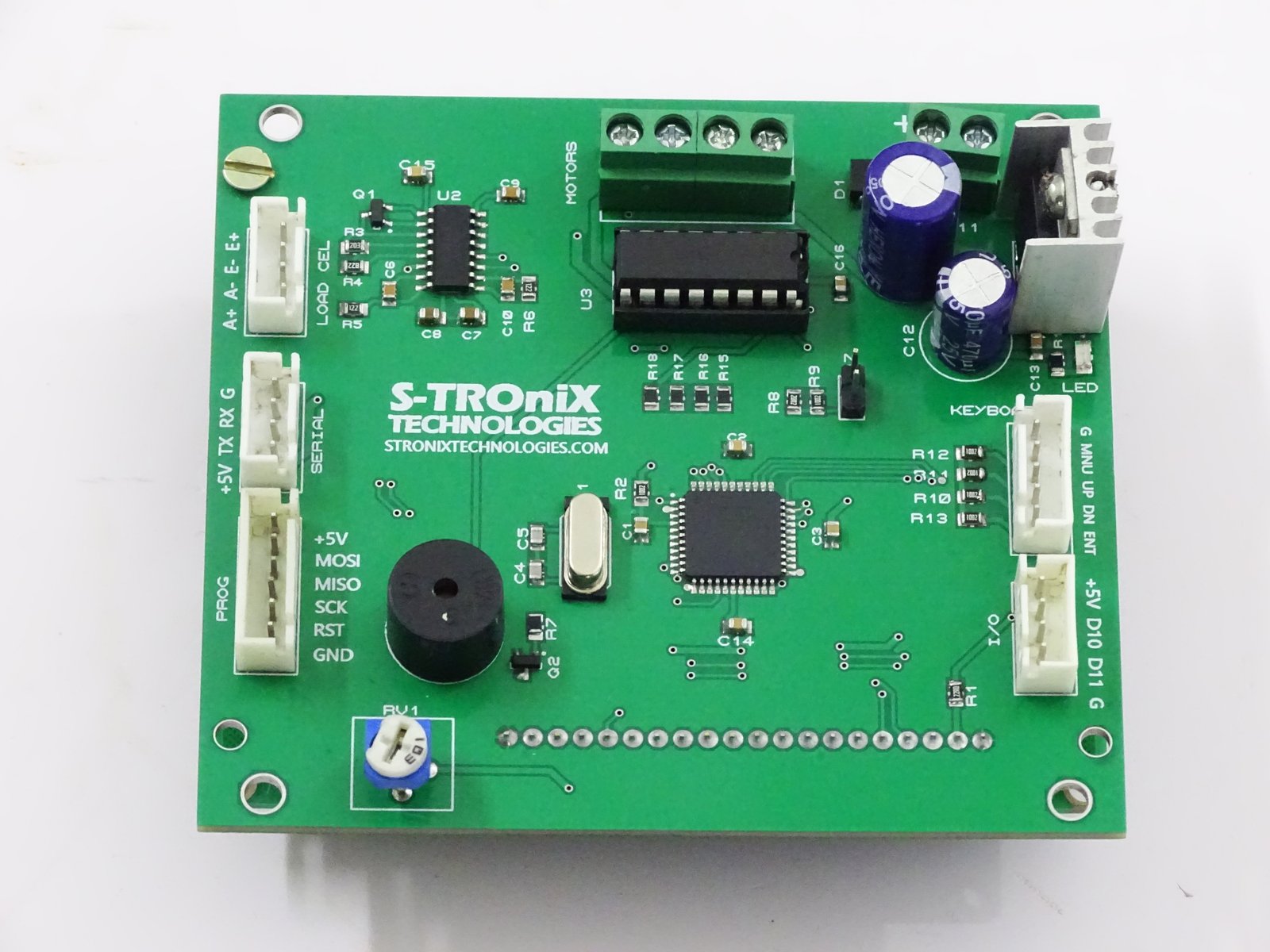

Blood Collection Monitor Controller Board acts as the reliable, automated core of your device. It takes the guesswork out of blood donation drives by handling real-time measurement, gentle mixing, and critical safety stops entirely on its own.

Input Voltage: 12V DC power source

Power Source: Battery / SMPS (selectable)

load Interface: HX711 24-bit ADC interface supporting 4-wire load cells

Category: Blood bank equipment

Description

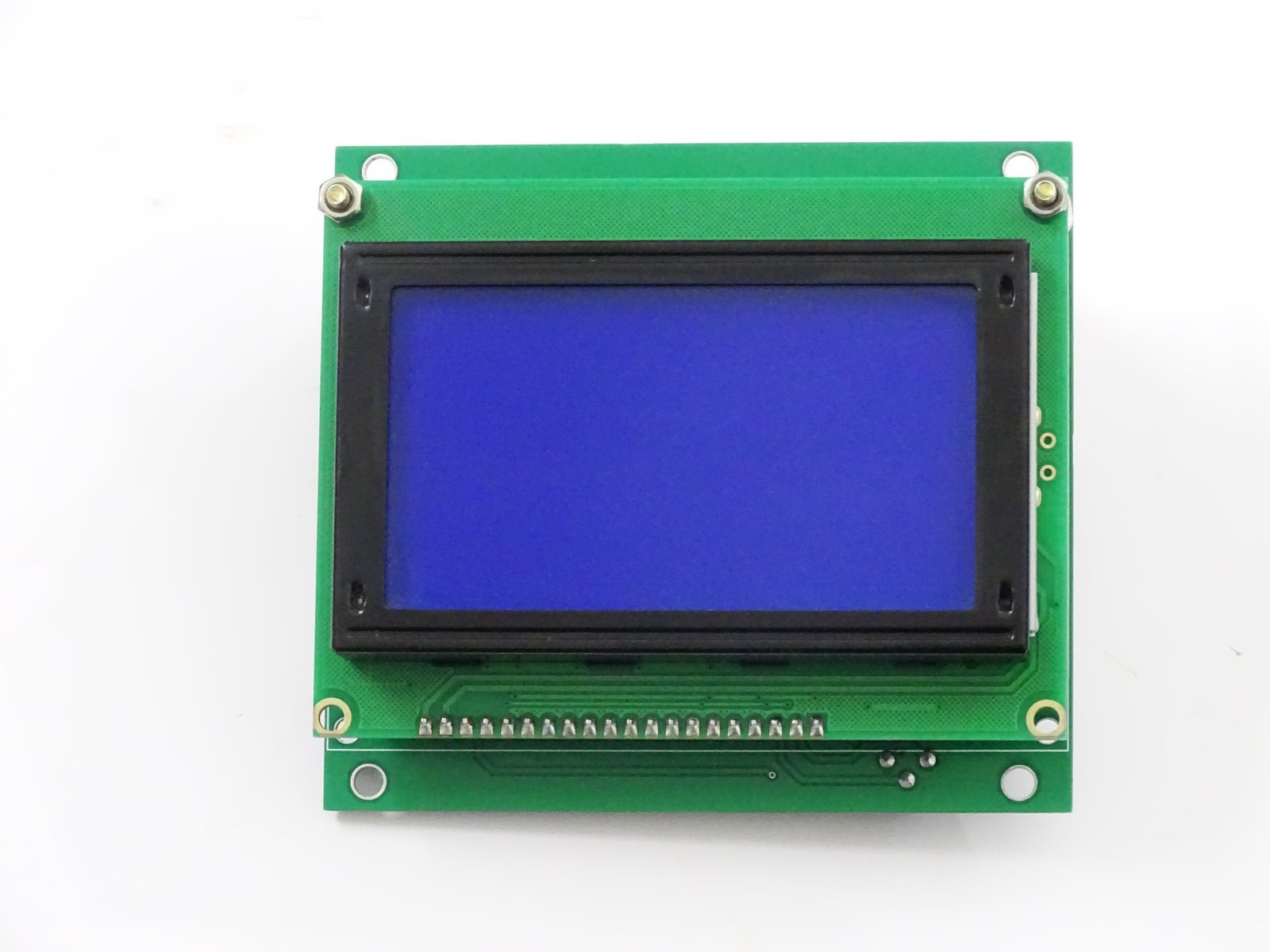

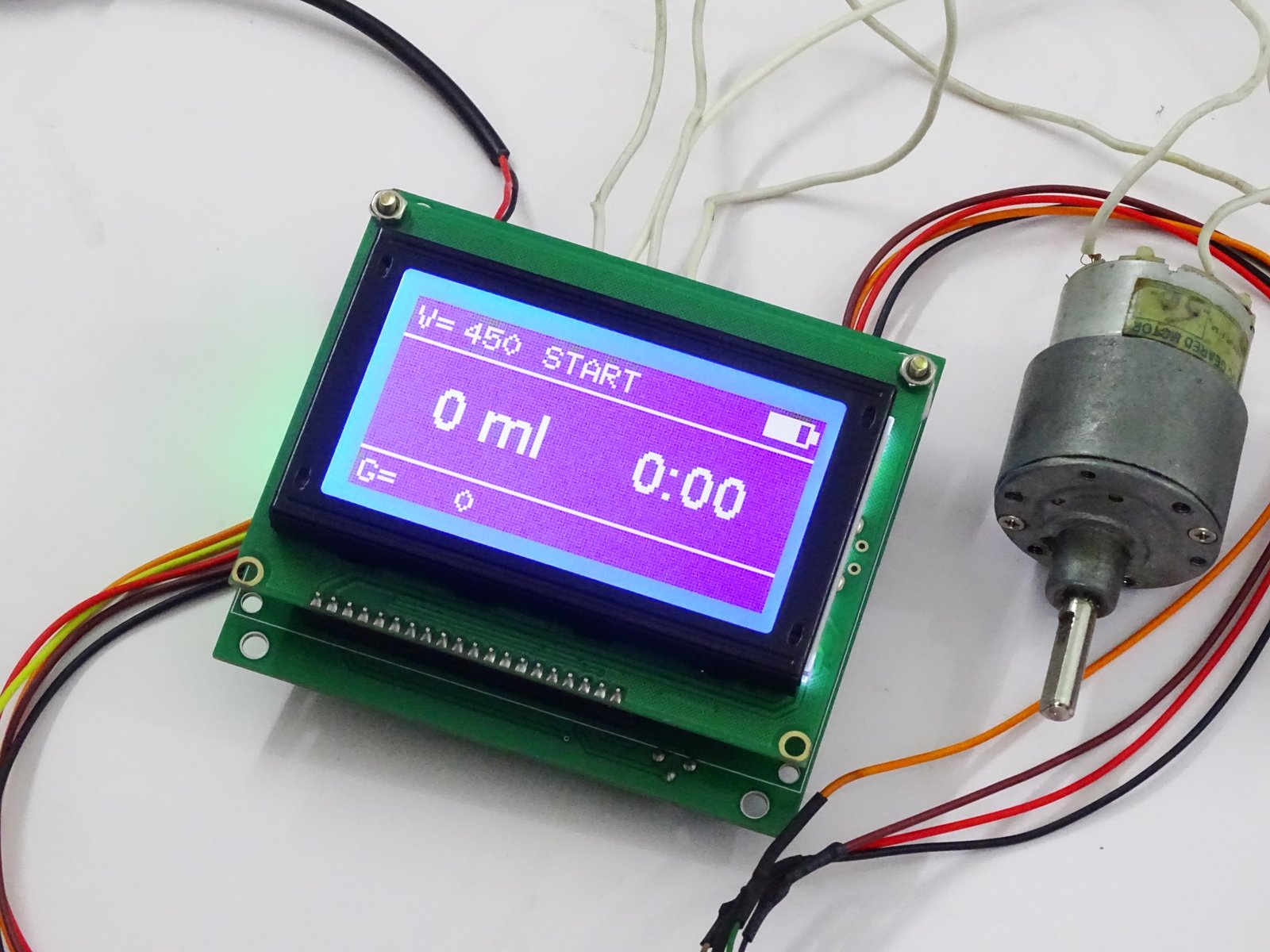

Display Integration: KS0108 128x64 graphical LCD display connected via a parallel interface (pins 12 to 23).
Measurement System: HX711 24-bit ADC load cell amplifier with zero-tare and span calibration using a 500 g reference weight. * Volume Presets & Accuracy: Standard presets for 350 ml and 450 ml, with fine adjustment ranges (300–400 ml and 400–500 ml respectively in 1 ml steps) converted using a blood density of $1.06\text{ g/ml}$.
Motor & Mechanical Controls: Dual DC motor control terminals for pan agitation and tube clamping/valve mechanisms.
Flow Monitoring: Automated flow rate tracking (calculated every 2 seconds) with alert thresholds for low flow ($<30\text{ ml/min}$) and high flow ($>80\text{ ml/min}$).
User Interface: 4-button tactile keypad support (MENU, UP, DOWN, ENTER) for navigation and manual process control.
Audio & Alerts: Onboard buzzer for completion signals, key presses, and flow rate warnings (with a software toggle to enable/disable).
Power Supply: 12V DC input supporting battery or SMPS operation, featuring a jumper setting for power/battery icon swapping on the display.
Data Persistence: Onboard EEPROM storage to retain user presets, calibration factors, and buzzer settings across power cycles.
Communication & Programming: Includes an on-board serial port connector (Tx, Rx, GND, +5V) for debugging and communication, plus a dedicated programming header for developers.
